Product parameter requirements:
Material: Ultra white glass
Size: Customizable
Dimensional tolerance: ± 0.08mm
Thickness tolerance: ± 0.05mm
Surface finish: 60/40
Technical requirements:
SI: UV-IRCUT680 filter film
350-400nm Tave<1%
425-660nm Tavg>97%
675±8nm T=50%
720-1100nmTave<1%
S2 surface: coated with anti reflection film 420-680
Top right corner chamfer 1-C1.39mm
Application areas: digital photography, security monitoring, medical testing instruments, etc;

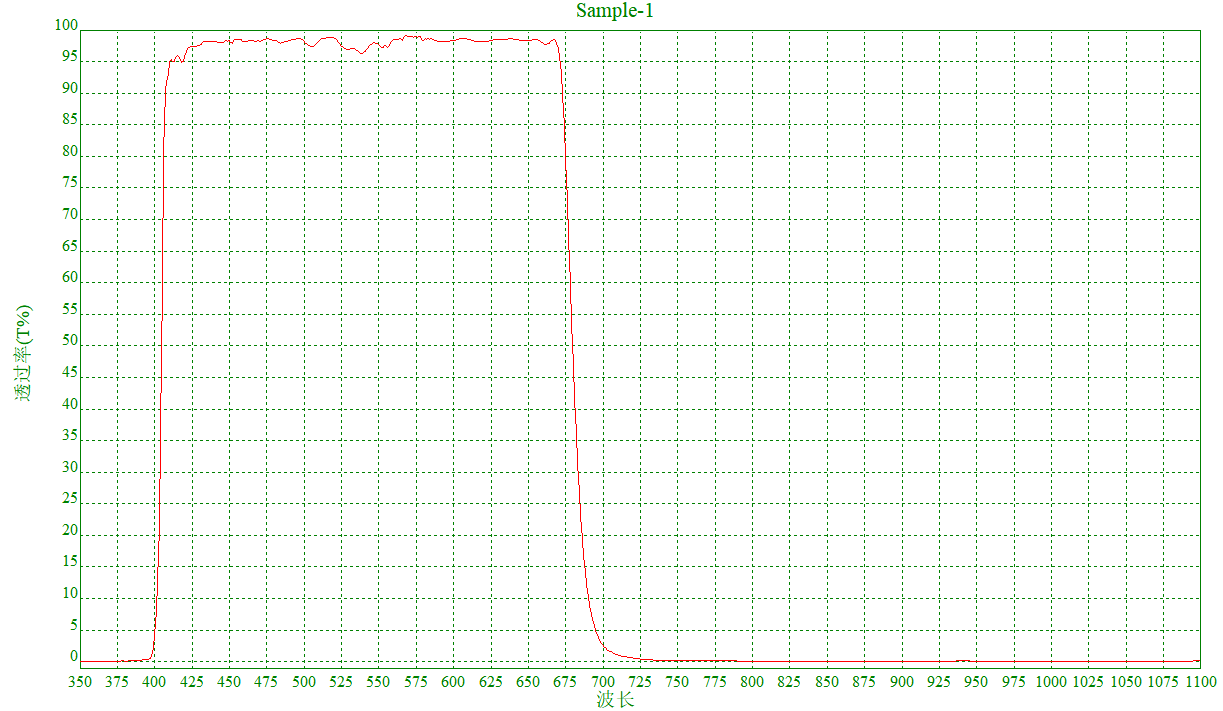

The curve is as follows:
